Chiropractic Imaging

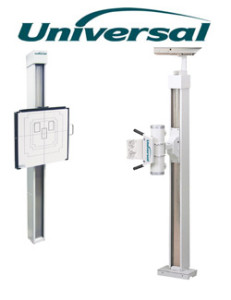

Universal Upright Raymaster

Features
Universal uniquely combines economy and flexibility in a system designed to meet specialized and individual professional radiographic needs. The Universal Raymaster system is thoroughly at home in private, group, or clinical applications. It provides full radiographic capabilities, from skull to weight bearing studies.

Benefits
Key benefits of the Universal Upright Raymaster include:

– Mounts floor-to-wall or floor-to-ceiling
– Tube rotation enables precision alignment of the tube for non-angled, angled and upright views.
– Convenient display gives indication of tube rotation

Spectra 30HF Radiographic Generator

The SPECTRA 30HF incorporates the latest technology available today. From automatic line compensation that adjusts for variance in incoming line voltage, to tube protection, which prohibits exposures with excessive kVp and mAs. Safe, reliable and consistent performance of the SPECTRA 30HF generator is what you can expect.

The operator console is remarkably easy to use. The operator simply enters the kVp and mAs technique factors. The SPECTRA 30HF generator automatically selects the highest mA and shortest exposure time possible. The dual mAs/ma digital display provides the operator with the opportunity to view the mA the SPECTRA 30HF selected. Giving the operator total control, the mA can be modified when longer exposure times are desired.

Sigma Digital CR

Features

Konica Minolta ImagePilot Sigma – the entry level digital radiography solution. The All‐In‐One digital radiography solution specifically for low‐volume practices that take their diagnostic imaging seriously.

Benefits

Key benefits of the Konica Minolta ImagePilot Sigma include:

– All-In-One Design—Easiest for the staff to learn. Reduces IT support requirements
– AutoPilot—Automatic image processing for unsurpassed consistency in image quality
– Simplified Image Acquisition—Single click workflow increases productivity
– Same User Interface At Every Workstation—learn only one system.
– Easy-To-Use And Feature Rich Viewing Screen—Image adjustments, annotations, measurements, inputs and outputs, customizable for basic to advanced users

DR Panel Options

VFPW
Wireless Flat Panel

All new wireless connectivity. Eliminate the need for a static wired connection & the need to run extra cabling. The 14×17 inch panel produces high quality images wirelessly.

VFP
Flat Panel

The versatile Flat Panel DR system offers images within seconds of exposure and it’s easily into smaller x-ray rooms. The 17×17 inch panel produces high quality images at an affordable price for Flat Panel technology.

VDR
Economical (CCD)

20/20 C-DR’s 14×17 sensor directly captures the image data and displays it on an acquire computer workstation within 10-12 seconds from exposure.

Chiropractic Software/PACS

Chiropractic Tool-set

Advanced Orthogonal Analysis, Gonstead measurements, Upper Cervical Analysis, George’s Lines, Ilium Analysis, Line Drawing, Measuring, Angles (Regular, Cobb), Cervical Curve, Lumbar Curve, Orthospinology, Full Spine Stitching, Spine Labeling

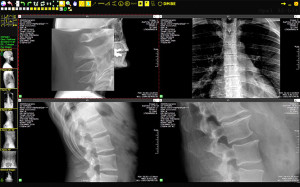

Opal Viewer

The Diagnostic Image Viewer screen provides a wealth of tools and options to assist in reading and manipulating high-resolution medical images.

– State-of-the-art DICOM viewer delivers powerful, intuitive workstation functionality
– Quick function shortcuts integrated for efficiency
– Full Chiropractic (DC) tools included with package purchase
– Available Chiropractic stitching (Manual & Automatic) contact sales for details
– Podiatric (DPM) Tools available
– WORLDWIDE access: view from anywhere!
– High-resolution multi-monitor support
– Customize screen layouts; up to 9 images per monitor
– Fully customizable settings to accommodate your specific needs
– Compare images (post/pre op)
– Refresh (see saved/available images, while study is being performed)
– Custom Toolbox (see top-left of above image), fully customizable annotations/tools
– Bone Enhancement – reprocess images sharper for enhanced diagnosis

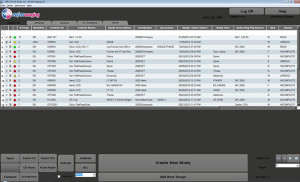

Opal Studylist

The Study Listing screen is your interface to the database. Now actions like opening, transferring, filtering, and sorting exams are an easy point-and-click task.

– Quick access to create patient studies
– Custom search/query options
– Burn & Import patients CDs
– Fully customize user privileges for different types of users
– DICOM Send & Receive integrated
– DICOM Print support
– Modality Worklist support

Opal Aquire

Features

– X-Pipe Technology: sharper images, clarity
– Quick view selection
– Customizable image sharpness level
– Auto Contrast upon processing, no need to adjust
– Image auto-shutter/crop (keeps DICOM standard size for sending)
– Sends images in the background upon exiting for added efficiency
– Generator Integration available on select systems, contact sales for details

When you’re ready for a quote, or if you have any questions, you can get started by calling us directly at 877.632.9729. We look forward to hearing from you and providing more information on how we can offer you a wonderful solution for veterinary imaging equipment.
